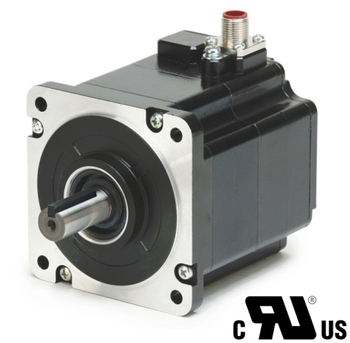

SCHRITTMOTOREN IP65 SP2861-51SX01

SCHRITTMOTOREN IP65 SP2861-51SX01

Flansch 85.5 mm NEMA 34

PDF Downloaden

Vorgeschlagene Motoren / Endstufenkombination

PREIS

1 Stk : 410.20 €

( ohne MwSt)

2-5 Stk : 315.60 €

( ohne MwSt)

FÜR 5+ STÜCKE BITTE WENDEN SIE SICH AN RTA

EIN ANGEBOT ZU ERHALTEN

Andere Modelle SP SERIES - FULL IP65 UND IP65 verfügbar:

EINLEITUNG

SANYO DENKI stepping motors SP series with protection degree IP 65 (also on the shaft side) have a higher resistance at dust & water and can be used in wet or dusty working environments.

-Protection degree: FULL IP 65 - Splash proof & dust proof also on the shaft side, due to the presence of a sealing ring ("oil seal").
-M12 IP65 connector on the motor for easy wiring.
-High performance in terms of torque and power with compact size.
-Coupling to drives with power supply directly from the main.
-Class F insulation.
-CE, UL and CSA marking.

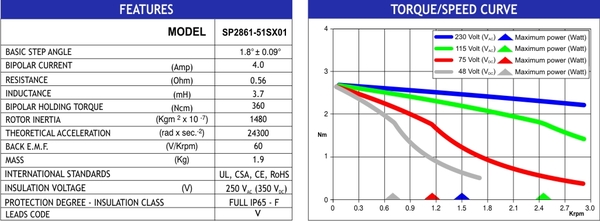

TECHNISCHE DATEN

SANYO DENKI stepping motors SP2861-51SX01 is characterized by flange size 85.5 mm. ( NEMA 34 ) and guarantees high performance with holding torque up to 360 Ncm.
Suggested R.T.A. driver: X-PLUS serie, X-MIND series (110-230Vac).
INCLUDING CONNECTING CABLE LENGTH 1 MT.
