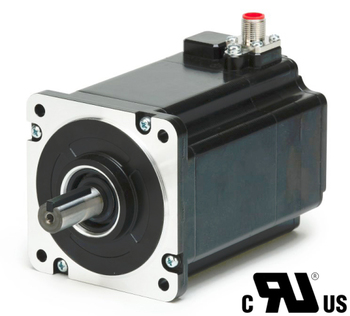

STEPPING MOTOR IP65 SP2862-51SX01

STEPPING MOTOR IP65 SP2862-51SX01

Flange size 85.5 mm. Nema 34

Download PDF

Suggested motor / drive coupling

PRICE

1 pc : 408.40 €

(Exclude vat)

2-5 pcs : 314.20 €

(Exclude vat)

FOR 5+ PCS, PLEASE CONTACT R.T.A. FOR A

SPECIAL QUOTATION

Other Models SP SERIES - FULL IP65 AND IP65 availables:

INTRODUCTION

SANYO DENKI stepping motors SP series with protection degree IP 65 (also on the shaft side) have a higher resistance at dust & water and can be used in wet or dusty working environments.

-Protection degree: FULL IP 65 - Splash proof & dust proof also on the shaft side, due to the presence of a sealing ring ("oil seal").
-M12 IP65 connector on the motor for easy wiring.
-High performance in terms of torque and power with compact size.
-Coupling to drives with power supply directly from the main.
-Class F insulation.
-CE, UL and CSA marking.

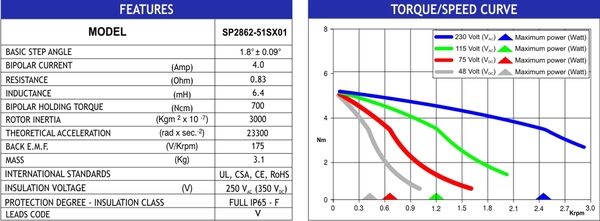

TECHNICAL SPECIFICATIONS

SANYO DENKI stepping motors SP2862-51SX01 is characterized by flange size 85.5 mm. ( NEMA 34 ) and guarantees high performance with holding torque up to 700 Ncm.
Suggested R.T.A. driver: X-PLUS serie, X-MIND series (110-230Vac).
INCLUDING CONNECTING CABLE LENGTH 1 MT.
