RTA - Motion Control Systems

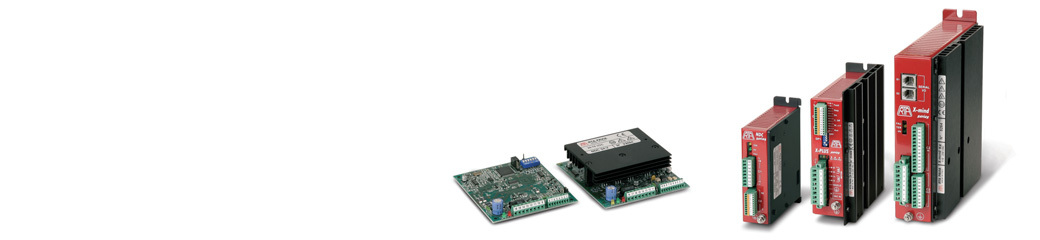

STEPPING MOTOR DRIVES AND SWITCHING POWER SUPPLIES

BSD Available Models Drive Type* Bus Voltage Range (Volt) Phase Current Range (Amp.) Dimensions (mm.)
150x_335560_325345_bsd2v_1 BSD 02.V SD 24 - 48 VDC 0.7 - 2.2 Open frame drive 78 x 68 x 21 mm Screw-type connectors
CSD Available Models Drive Type* Bus Voltage Range (Volt) Phase Current Range (Amp.) Dimensions (mm.)
CSD 94 SD 24 - 48 VDC 2.6 - 4.4 Box 90 x 99 x 21 mm Plug_in connectors
CSD 92 SD 24 - 48 VDC 0.7 - 2.4 Box 90 x 99 x 21 mm Plug_in connectors
CSD J2 AI, PM 24 - 48 VDC 1.2 - 2.1 Box 90 x 99 x 30 mm
Plug_in connectors
CSD J4 AI, PM 24 - 48 VDC 2.6 - 4.4 Box 90 x 99 x 30 mm
Plug_in connectors
CSD 02.V SD 24 - 48 VDC 0.7 - 2.4 Open frame drive 92 x 85 x 22 mm Screw-type connectors
CSD 04.V SD 24 - 48 VDC 2.6 - 4.4 Open frame drive 92 x 85 x 22 mm Screw-type connectors
A-CSD Available Models Drive Type* Bus Voltage Range (Volt) Phase Current Range (Amp.) Dimensions (mm.)
150x_325471_acsd2v_1 A-CSD 94 SD 24 - 48 VDC 2.6 - 4.4 Box 90 x 99 x 21 mm Plug_in connectors
A-CSD 92 SD 24 - 48 VDC 0.7 - 2.4 Box 90 x 99 x 21 mm Plug_in connectors
A-CSD 02.V SD 24 - 48 VDC 0.7 - 2.4 Open frame drive 92 x 85 x 22 mm Screw-type connectors
A-CSD 04.V SD 24 - 48 VDC 2.6 - 4.4 Open frame drive 92 x 85 x 22 mm Screw-type connectors
CSD ET Available Models Drive Type* Bus Voltage Range (Volt) Phase Current Range (Amp.) Dimensions (mm.)
150x_761305_csd_et_94 CSD ET 94 SD 24 - 48 VDC 2.6 - 4.4 Box 90 x 99 x 21 mm Plug_in connectors
CSD ET S4 SD 24 - 48 VDC 2.6 - 4.4 Box 90 x 99 x 21 mm Plug_in connectors
CSD ET S8 ET 24 - 85 VDC 6.0 Box 90 x 99 x 21 mm Plug_in connectors
NDC Available Models Drive Type* Bus Voltage Range (Volt) Phase Current Range (Amp.) Dimensions (mm.)
NDC 94 SD 24 - 75 VDC 0.6 - 2.0 Box 110 x 108 x 34 mm Plug_in connectors
NDC 96 SD 24 - 75 VDC 1.9 - 6.0 Box 110 x 108 x 34 mm Plug_in connectors
NDC 06 SD 24 - 75 VDC 1.9 - 6.0 Open frame drive 101 x 94 x 25 mm AMP connectors
NDC 04.V SD 24 - 75 VDC 0.6 - 2.0 Open frame drive 101 x 94 x 25 mm connectors Screw-type
NDC 06.V SD 24 - 75 VDC 1.9 - 6.0 Open frame drive 101 x 94 x 25 mm connectors Screw-type
PLUS Available Models Drive Type* Bus Voltage Range (Volt) Phase Current Range (Amp.) Dimensions (mm.)
150x_325476_plusb3_1 PLUS A3 SD 39 - 85 VDC 2.4 - 8.0 Box 152 x 129 x 46 mm Plug_in connectors
PLUS A4 SD 77 - 140 VDC 1.9 - 6.0 Box 152 x 129 x 46 mm Plug_in connectors
PLUS B3 SD 28 - 62 VAC 2.4 - 8.0 Box 152 x 129 x 46 mm Plug_in connectors
PLUS B4 SD 55 - 100 VAC 1.9 - 6.0 Box 152 x 129 x 46 mm Plug_in connectors
PLUS B7 SD 28 - 62 VAC 3.0 - 10.0 Box 152 x 129 x 46 mm Plug_in connectors
PLUS K5 PM 28 - 62 VAC 4.4 - 8.0 Box 152 x 129 x 46 mm Plug_in connectors
PLUS K4 PM 55 - 100 VAC 3.4 - 6.0 Box 152 x 129 x 46 mm Plug_in connectors
ADW Available Models Drive Type* Bus Voltage Range (Volt) Phase Current Range (Amp.) Dimensions (mm.)
150x_325341_adw4v_1 ADW 04.V AI 24 - 75 VDC 0.65 - 2.0 Open frame drive 122 x 93,5 x 25 mm Screw-type connectors
ADW 06.V AI 24 - 75 VDC 1.9 - 6.0 Open frame drive 122 x 93,5 x 25 mm Screw-type connectors
ADW 94 IA 24 - 75 VDC 0.65 - 2.0 Boxed drive 129 x 110 x 34 mm AMP connectors
ADW 96 IA 24 - 75 VDC 1.9 - 6.0 Boxed drive 129 x 110 x 34 mm AMP connectors
R-UHP 12 VDC Available Models Nominal Power (W) Input (V) Output (V) Dimensions (mm.)
150x_772753_ruhp_350 R-UHP 350-12 350 90-264 12 VDC 220X62X31
R-UHP 500-12 500 90-264 12 VDC 232X81X31
R-UHP 24 VDC Available Models Nominal Power (W) Input (V) Output (V) Dimensions (mm.)
150x_772739_r_uhp_200_24 R-UHP 200-24 200 90-264 24 VDC 194X55X26
R-UHP 350-24 350 90-264 24 VDC 220x62x31
R-UHP 500-24 500 90-264 24 VDC 232x81x31
R-UHP 48 VDC Available Models Nominal Power (W) Input (V) Output (V) Dimensions (mm.)
150x_772935_r-uhp_200_48 R-UHP 200-48 200 90-264 48 VDC 194X55X26
R-UHP 350-48 350 90-264 48 VDC 220X62X31
R-UHP 500-48 500 90-264 48 VDC 232X81X31
R-UHP 1000-48 1000 90-264 48 VDC 240X115X41
R-NDR 48 VDC Available Models Nominal Power (W) Input (V) Output (V) Dimensions (mm.)
150x_773010_rndr_240_48 R-NDR 240-48 240 90-264 48 VDC 125.2X63X113.5
R-NDR 480-48 480 90-264 48 VDC 125.2X85.5X128.5
TRASFORMATORI MONOFASE Available Models Power (VA) Secondary (V) Dimensions (mm.)
150x_791285_trasf SP 26 VA 800 48/57/94/135 (15 AUX) 180X168X147
SP 27 VA 350 48/57/94 (15 AUX) 135X128X116
SP 28 VA 300 48/0/48 120X118X125
GAC Available Models Drive Type* Bus Voltage Range (Volt) Phase Current Range (Amp.) Dimensions (mm.)
150x_785094_gac GAC03 SD 42 - 62 VAC 4.0 - 10.0 Open frame drive 100 x 250 x 56 mm
GAC 03.I SD 42 - 62 VAC 4.0 - 10.0 Open frame drive 100 x 250 x 56 mm
GAC 04 SD 69 - 100 VAC 5.0 - 12.0 Open frame drive 100 x 250 x 56 mm
GAC 04.I SD 69 - 100 VAC 5.0 - 12.0 Open frame drive 100 x 250 x 56 mm
GMD Available Models Drive Type* Bus Voltage Range (Volt) Phase Current Range (Amp.) Dimensions (mm.)
150x_785030_785014_gmd GMD 02 SD 55 - 85 VDC 1.6 - 6.0 Scheda 100 x 160 x 45 mm
GMD 02.I SD 55 - 85 VDC 1.6 - 6.0 Scheda 100 x 160 x 45 mm
GMD 03 SD 55 - 85 VDC 4.0 - 10.0 Scheda 100 x 160 x 45 mm
GMD 03.I SD 55 - 85 VDC 4.0 - 10.0 Scheda 100 x 160 x 45 mm
GMD 04 SD 95 - 140 VDC 5.0 - 12.0 Scheda 100 x 160 x 51 mm
GMD 04.I SD 95 - 140 VDC 5.0 - 12.0 Scheda 100 x 160 x 51 mm
GMD 06 SD 160 - 190 VDC 5.0 - 12.0 Scheda 100 x 160 x 51 mm
GMH Available Models Drive Type* Bus Voltage Range (Volt) Phase Current Range (Amp.) Dimensions (mm.)
150x_785098_gmh GMH 05 SD 55 - 85 VDC 1.6 - 3.0 Scheda 100 x 160 x 30 mm
GMH 06 SD 55 - 85 VDC 3.5 - 6.0 Scheda 100 x 160 x 30 mm
GMH 07 SD 55 - 85 VDC 7.0 - 12.0 Scheda 100 x 160 x 45 mm
GMH 09 SD 100 - 180 VDC 7.0 - 12.0 Scheda 100 x 160 x 51 mm
PLUS - SPARE PARTS Available Models Drive Type* Bus Voltage Range (Volt) Phase Current Range (Amp.) Dimensions (mm.)
150x_325363_pluse3_1 PLUS E3 LS 28 - 62 VAC 2.4 - 8.0 Box 152 x 129 x 46 mm Plug_in connectors
PLUS E4 LS 55 - 100 VAC 1.9 - 6.0 Box 152 x 129 x 46 mm Plug_in connectors
MIND Available Models Drive Type* Bus Voltage Range (Volt) Phase Current Range (Amp.) Dimensions (mm.)
150x_785091_mindb MIND B2 SD 55 - 85 VDC 2.3 - 4.0 Scheda 180 x 173 x 53 mm
MIND B3 SD 55 - 85 VDC 5.7 - 10.0 Scheda 180 x 173 x 53 mm
MIND B4 SD 95 - 140 VDC 4.5 - 8.0 Scheda 180 x 173 x 53 mm
MIND B5 SD 120 - 180 VDC 6.7 - 12.0 Scheda 180 x 173 x 53 mm
MIND T2 PM 55 - 85 VDC 2.3 - 4.0 Scheda 180 x 173 x 53 mm
MIND T3 PM 55 - 85 VDC 5.7 - 10.0 Scheda 180 x 173 x 53 mm
MIND T4 PM 95 - 140 VDC 4.5 - 8.0 Scheda 180 x 173 x 53 mm
MIND T5 PM 120 - 180 VDC 6.7 - 12.0 Scheda 180 x 173 x 53 mm
SAC Available Models Drive Type* Bus Voltage Range (Volt) Phase Current Range (Amp.) Dimensions (mm.)
150x_785194_sac SAC 25 SD 24 - 50 VAC 1.7 - 3.0 Scheda 101 x 125 x 35 mm
SAC 26 SD 24 - 50 VAC 3.4 - 6.0 Scheda 101 x 125 x 35 mm
BCW Available Models Drive Type* Bus Voltage Range (Volt) Phase Current Range (Amp.) Dimensions (mm.)
150x_785272_bcw BCW 02 SD 130 - 175 VAC 5.8 - 14.0 Scheda 248 x 234 x 70 mm
OFM Available Models Drive Type* Bus Voltage Range (Volt) Phase Current Range (Amp.) Dimensions (mm.)
150x_785338_ofm60 OFM30
OFM40.P
OFM60
OFM60.M
FFM Available Models Drive Type* Bus Voltage Range (Volt) Phase Current Range (Amp.) Dimensions (mm.)
150x_785295_ffm_04 FFM01
FFM02
FFM04
FFM05
RMM Available Models Drive Type* Bus Voltage Range (Volt) Phase Current Range (Amp.) Dimensions (mm.)
150x_785275_rmm RMM36
RMM36.D
PS Available Models Drive Type* Bus Voltage Range (Volt) Phase Current Range (Amp.) Dimensions (mm.)
150x_785573_ps0x PS 03 41 - 61 VAC
PS 04 69 - 100 VAC
PS 06 110 - 135 VAC
PSM Available Models Drive Type* Bus Voltage Range (Volt) Phase Current Range (Amp.) Dimensions (mm.)
150x_785717_psm PSM3 41 - 61 VAC 82 x 93 x 150 mm
PSM5 85 - 135 VAC 82 x 93 x 150 mm
A-NDC Available Models Drive Type* Bus Voltage Range (Volt) Phase Current Range (Amp.) Dimensions (mm.)
A-NDC 94 SD 24 - 85 VDC 0.6 - 2.0 Box 110 x 108 x 34 mm Plug_in connectors
A-NDC 96 SD 24 - 85 VDC 1.9 - 6.0 Box 110 x 108 x 34 mm Plug_in connectors
A-NDC 06.V SD 24 - 85 VDC 1.9 - 6.0 Open frame drive 101 x 94 x 25 mm Screw-type connectors
A-NDC 04.V SD 24 - 85 VDC 0.6 - 2.0 Open frame drive 101 x 94 x 25 mm Screw-type connectors

(*) DRIVE TYPE:
SD: STEP/DIR
ET: ETHERCAT
AI: ANALOG INPUT
PM: PROGRAMMABLE
