INTRODUCTION

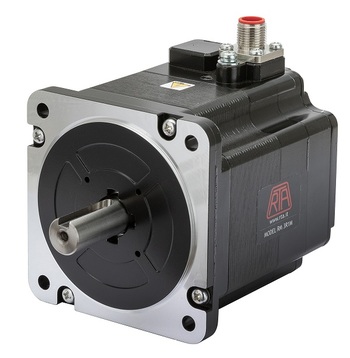

RM 3R1M motor is characterized by flange size 86 mm. with holding torque up to 360 Ncm.
Suggested R.T.A. driver: 230 VAC X-PLUS and X-MIND series.

Protection degree: IP54.
M12 connector on the motor for easy wiring.
High performance in terms of torque and power with compact size.
Coupling to drives with power supply directly from the main.
Class F insulation.
CE, UL and CSA marking.
