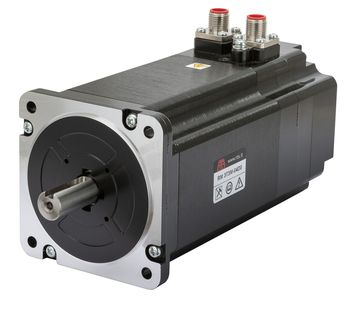

INTRODUCTION

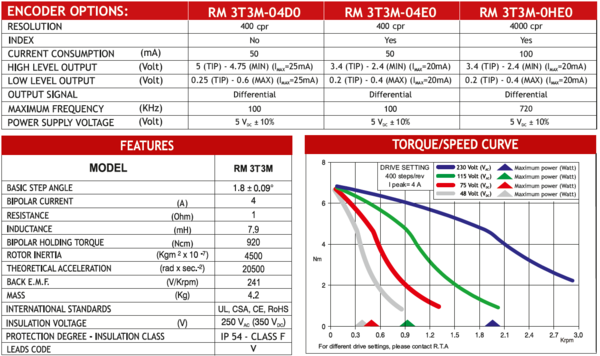

RM 3T3M-0HE0 motor is available with encoder with 4000 cpr resolution and index (Download PDF for details).

This motor is characterized by flange size 86 mm. with holding torque up to 920 Ncm.
Suggested R.T.A. driver: 230 VAC X-PLUS and X-MIND series.

Protection degree: IP54.
M12 connector on the motor for easy wiring.
High performance in terms of torque and power with compact size.
Coupling to drives with power supply directly from the main.
Class F insulation.
CE, UL and CSA marking.
