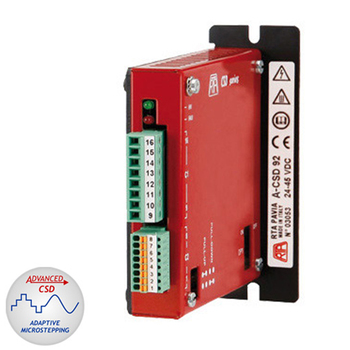

* Series of ministep bipolar chopper drives, suitable for driving medium-low power two-phase stepping motors, with four, six or eight terminals.
* Highly compact, easy to use and cost effective solution. This system is designed for easy mounting inside a metallic electrical cabinet.
* Target: low power applications without special configuration requirement, but needing high precision, smoothness of movement and low acoustic noise.
* Microstepping function up to 3.200 step/rev.
* Electronic damping facility for further acoustic noise and mechanic vibrations reduction at low and medium speed.
* Separated connectors for logic signals and power connections.
* Pull-up and pull-down input signals ease interfacing with the most commonly used control systems.
* Version: drive housed in a metallic box in 90 x 99 x 21 mm, equipped with plug-in connectors.
* Range of operating voltages: 24-48 VDC.
* Range of current: 0.7-2.4 Amp. Setting up to eight possible values by means of a dip-switches.
* Microstepping: 400, 800, 1.600, 3.200 steps/revolution. Setting by means of a dip- switches.
* Automatic current reduction at motor standstill.
* Protections:
-Protection against under-voltage and over-voltage.
-Protection against a short-circuit at motor outputs.
-Overtemperature protection with thermal sensor.
* Possibility to set Pull-UP or Pull-Down inputs.
* Possibility to switch off motor current with an external logic signal.
* High efficiency CHOPPER with MOSFET final stage output.
* Electronic damping facility for further acoustic noise and mechanic vibrations reduction at low and medium speed.
* UL Recognized.
* Warranty: 24 months.
