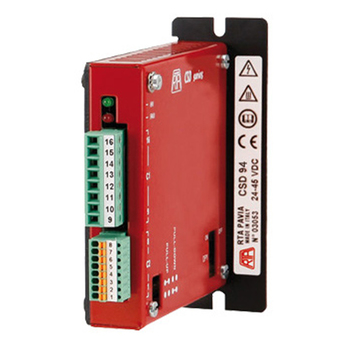

CSD 94 model is fitted into a metallic box of (90 x 99 x 21 mm). It is equipped with plug-in connectors, separated for power and logic sections. It is able to drive motors up to 4.4 Amps nominal current and it is the perfect choice for low-power applications with small size stepper motors.
RTA’s CSD series features low power bipolar ministep drives. It is based on 2 families with different possibilities of command and interface.They are characterized by a limited power range, small dimensions and easy setup. CSD series drives provide the traditional high quality and reliability of RTA, but also a very competitive price. All models are equipped with Chopper systems featuring high performance Mosfet power stage, microstepping up to 3.200 step/rev for Step&Direction models and up to 4.000 step/rev for Programmable models.
* Version: drive housed in a metallic box in 90 x 99 x 21 mm, equipped with plug-in connectors.
* Range of operating voltages: 24-48 VDC.
* Range of current: 2.6-4.4 Amp. Setting up to eight possible values by means of a dip-switch.
* Microstepping: 400, 800, 1.600, 3.200 steps/revolution. Setting by means of a dip- switch.
* Automatic current reduction at motor standstill.
* Protections:
-Protection against under-voltage and over-voltage.
-Protection against a short-circuit at motor outputs.
-Overtemperature protection with thermal sensor.
* Electronic damping facility for further acoustic noise and mechanic vibrations reduction.
* Possibility to set Pull-UP or Pull-Down inputs.
* UL Recognized.
* Warranty: 24 months.
